Technical Specifications
| Continuous service temperature | −10 to 100°C |
| Elongation at break | 200–600% |
| Flexural strength | 35–45 MPa |
| Hardness | Shore D 65-75 |
| Impact strength | Good (excellent at low temps for copolymer) |
| Melting point | ~160–165°C |
| Polymer type | Polypropylene (PP-H / PP-C, grade dependent) |
| Tensile modulus | 1.3–1.7 GPa |
| Water absorption (24 h at 23°C) | <0.01% |
| UV resistance | Moderate |
| Impact resistance | Good |
| Chemical resistance | Very good |
| Machinability | Good |
| Max service temperature | 100°C |
| Weldable | Yes |
| Suitable for | Chemical tanks, Water treatment, Lab equipment |

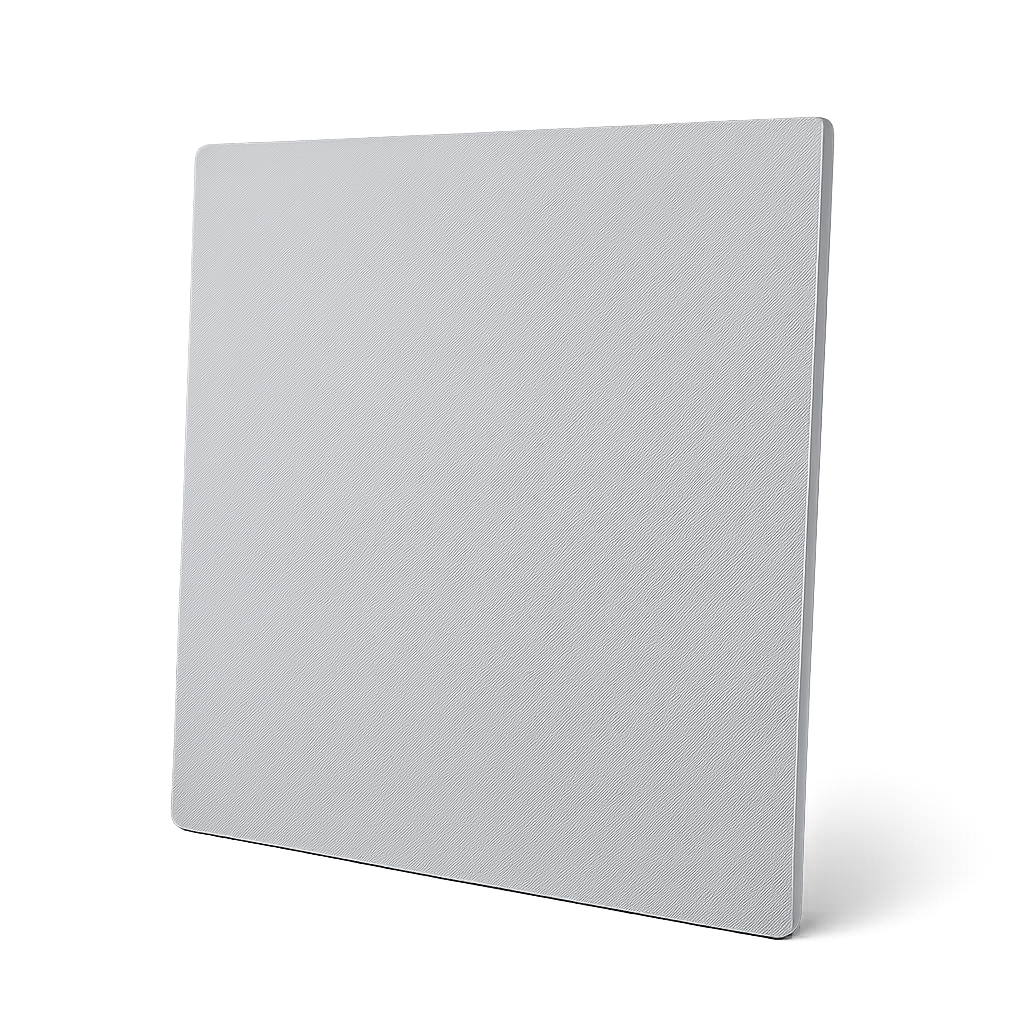

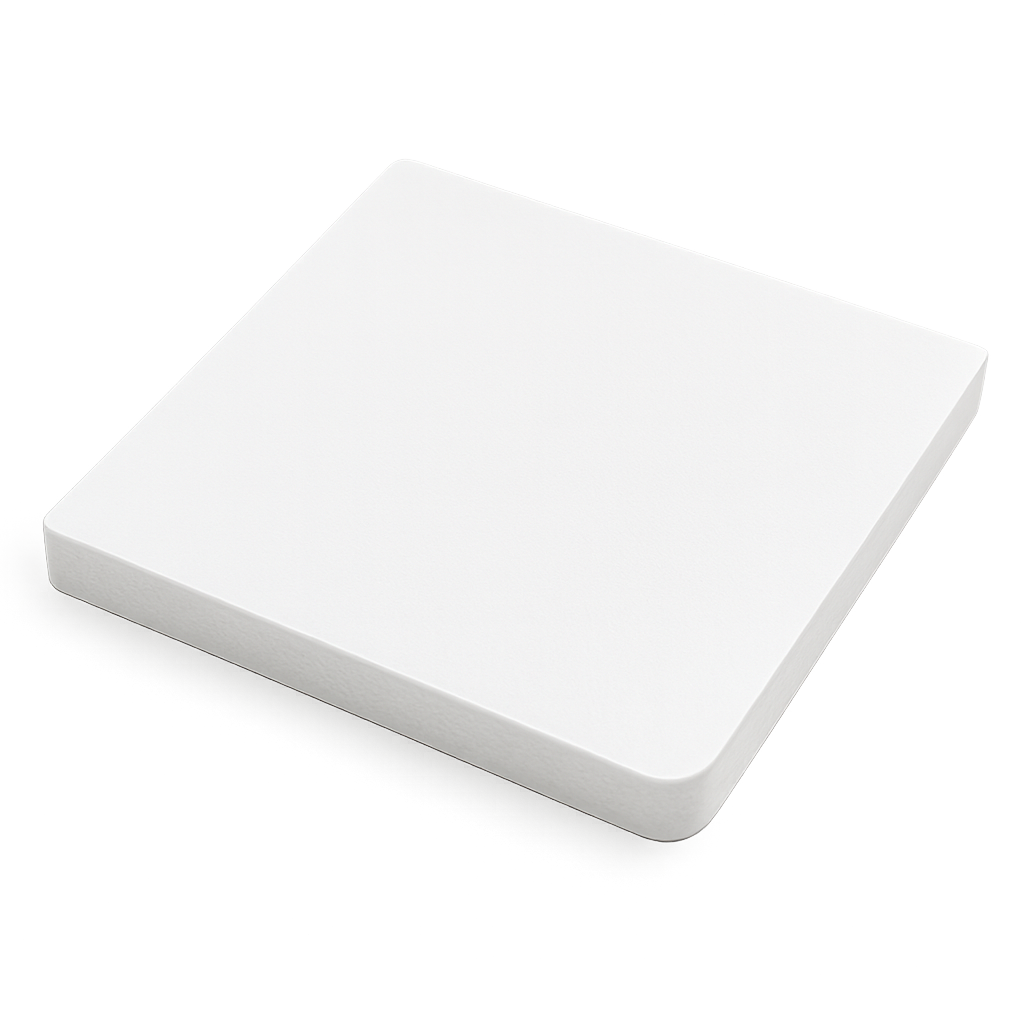

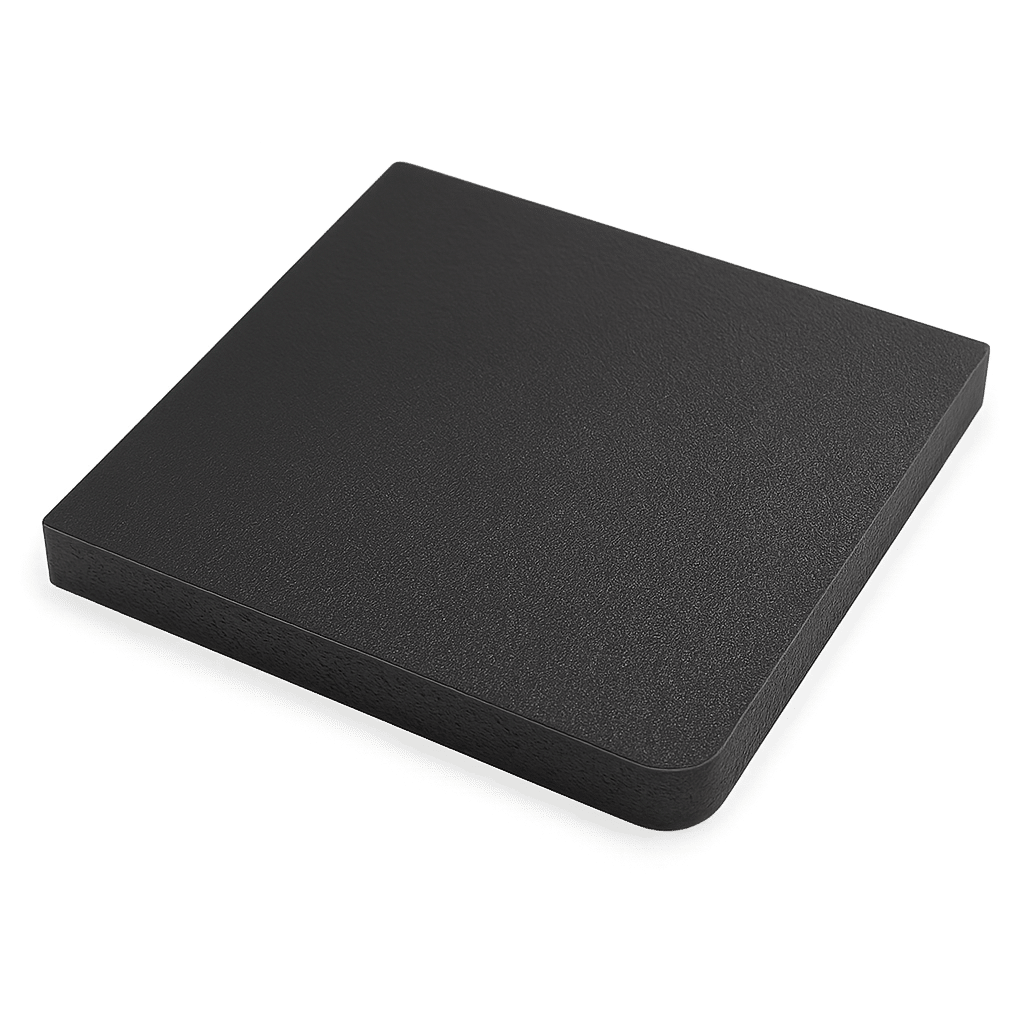

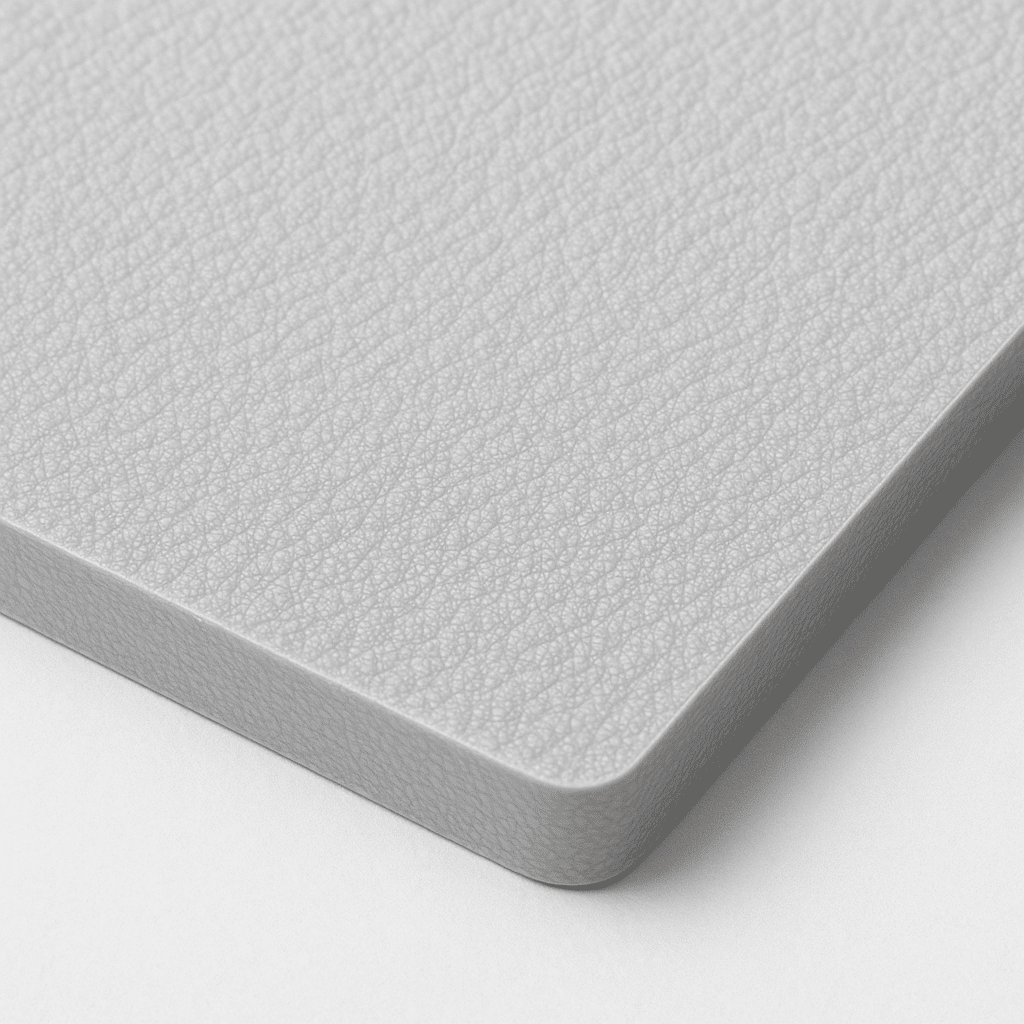

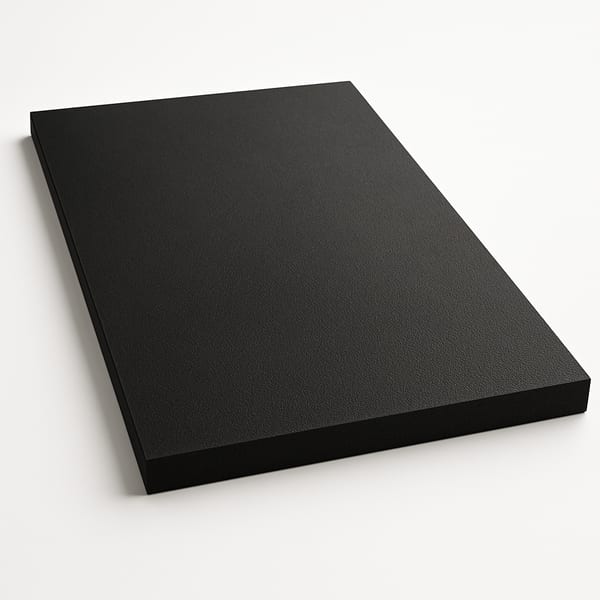

Uniboard Foamlite® ECO Polypropylene Sheet
Uniboard Foamlite® ECO Polypropylene Sheet. Cut to size and supplied Australia-wide by Plastic Online.
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Clear acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
A rounded edge can be at most half the sheet thickness.
| - - | - |
|---|---|
| Quantity | - |
| Drill holes | - |
| Flame polish | - |
| Rounded corners | - |
| Edge profile | - |
| Cutting & Setup Fee Charged once per order | - |
| Shipping | estimate above |
Ready to order your Uniboard Foamlite® ECO Polypropylene Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Technical Specifications
| Continuous service temperature | −10 to 100°C |
| Elongation at break | 200–600% |
| Flexural strength | 35–45 MPa |
| Hardness | Shore D 65-75 |
| Impact strength | Good (excellent at low temps for copolymer) |
| Melting point | ~160–165°C |
| Polymer type | Polypropylene (PP-H / PP-C, grade dependent) |
| Tensile modulus | 1.3–1.7 GPa |
| Water absorption (24 h at 23°C) | <0.01% |
| UV resistance | Moderate |
| Impact resistance | Good |
| Chemical resistance | Very good |
| Machinability | Good |
| Max service temperature | 100°C |
| Weldable | Yes |
| Suitable for | Chemical tanks, Water treatment, Lab equipment |
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your Uniboard Foamlite® ECO Polypropylene Sheet to spec.
What you can make with Uniboard Foamlite® ECO Polypropylene Sheet
Processing Services
Services available for this product
Laser Cutting
Precision laser cutting for acrylic, MDF, and thin plastics.
Learn moreCNC Routing
Complex profiles, holes, and pockets in sheet up to 50mm.
Learn moreFabrication
Bending, bonding, and assembly of sheet into finished products.
Learn moreVacuum Forming
Thermoformed sheet into 3D shapes for covers, trays, and enclosures.
Learn more
