Technical Specifications
| Thermal expansion | 70 × 10⁻⁶ /°C |
| Light transmission (clear) | Up to 92% |
| Polymer type | Polymethyl Methacrylate (PMMA) |
| Tensile modulus | 2.8–3.3 GPa |
| Vicat softening temperature | ~105°C |
| Water absorption (24 h at 23°C) | ~0.3% |
| UV resistance | Very good |
| Impact resistance | Moderate |
| Chemical resistance | Moderate |
| Machinability | Very good |
| Max service temperature | 70°C |
| Weldable | No |
| Suitable for | Displays, Signage, Sneeze guards, Glazing |
| Food contact | Food safe for cake stands and food display |
Certifications & Downloads

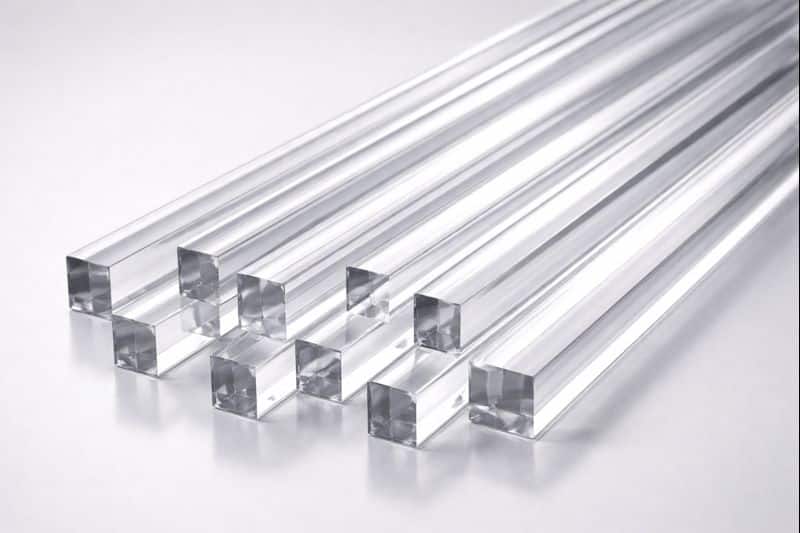

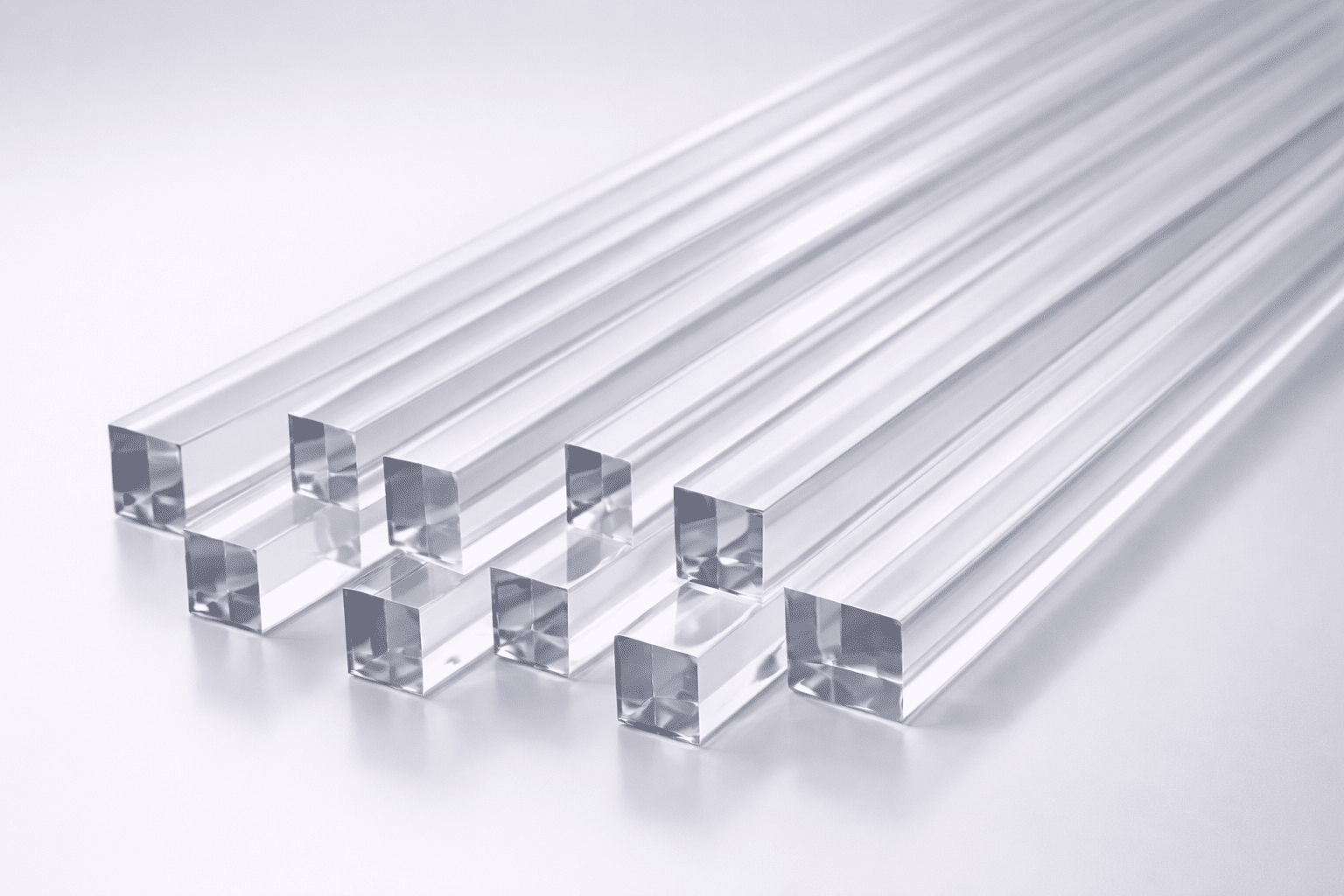

Acrylic Clear Square Rod
Acrylic Clear Square Rod. Cut to size and supplied Australia-wide by Plastic Online.
Need a different size or bulk pricing? Email a quote.
Ready to order your Acrylic Clear Square Rod?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Popular Materials
Technical Specifications
| Thermal expansion | 70 × 10⁻⁶ /°C |
| Light transmission (clear) | Up to 92% |
| Polymer type | Polymethyl Methacrylate (PMMA) |
| Tensile modulus | 2.8–3.3 GPa |
| Vicat softening temperature | ~105°C |
| Water absorption (24 h at 23°C) | ~0.3% |
| UV resistance | Very good |
| Impact resistance | Moderate |
| Chemical resistance | Moderate |
| Machinability | Very good |
| Max service temperature | 70°C |
| Weldable | No |
| Suitable for | Displays, Signage, Sneeze guards, Glazing |
| Food contact | Food safe for cake stands and food display |
Certifications & Downloads
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your Acrylic Clear Square Rod to spec.
Processing Services
Services available for this product
CNC Lathe Machining
Precision turning for bushings, rollers, and threaded components.
Learn moreCNC Routing
Milling flats, keyways, and complex features into rod stock.
Learn moreMachined Parts
Finished components to drawing from engineering-grade rod.
Learn moreFabrication
Welding, bonding, and assembly of rod into finished assemblies.
