Technical Specifications
| Thermal expansion | 80-100 × 10⁻⁶ /°C |
| Compressive strength | ~80–90 MPa |
| Flexural strength | 90–120 MPa |
| Hardness | Shore D 75-85 |
| Impact strength (Charpy, notched) | 5–8 kJ/m² |
| Polymer type | Polyamide 6 (PA6 / Nylon 6) |
| Water absorption (24 h at 23°C) | ~1.3% |
| UV resistance | Moderate |
| Impact resistance | Very good |
| Chemical resistance | Good |
| Machinability | Good |
| Max service temperature | 150°C |
| Weldable | No |
| Suitable for | Gears, Bearings, Bushings, Wear strips |
Certifications & Downloads

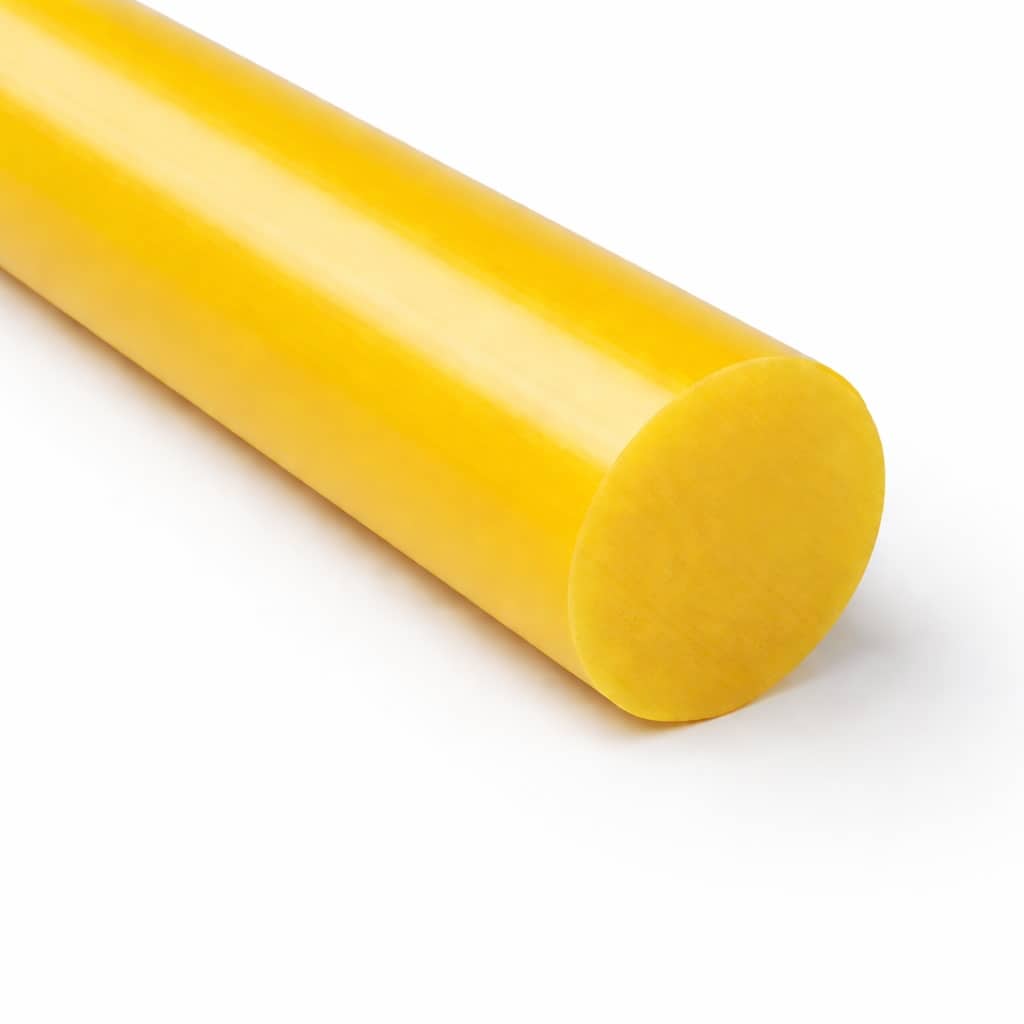

Yellow LFX Nylon Rod (Oil Filled)
Yellow LFX Nylon Rod (Oil Filled). Cut to size and supplied Australia-wide by Plastic Online.
1m
Per-piece pricing for off-the-shelf lengths. Need a custom cut or a shorter length? Email us a quote.
Ready to order your Yellow LFX Nylon Rod (Oil Filled)?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Technical Specifications
| Thermal expansion | 80-100 × 10⁻⁶ /°C |
| Compressive strength | ~80–90 MPa |
| Flexural strength | 90–120 MPa |
| Hardness | Shore D 75-85 |
| Impact strength (Charpy, notched) | 5–8 kJ/m² |
| Polymer type | Polyamide 6 (PA6 / Nylon 6) |
| Water absorption (24 h at 23°C) | ~1.3% |
| UV resistance | Moderate |
| Impact resistance | Very good |
| Chemical resistance | Good |
| Machinability | Good |
| Max service temperature | 150°C |
| Weldable | No |
| Suitable for | Gears, Bearings, Bushings, Wear strips |
Certifications & Downloads
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your Yellow LFX Nylon Rod (Oil Filled) to spec.
