Technical Specifications

Specific Density
0.93–0.94 g/cm³
Shore Hardness (D)
60–68
Tensile Strength
20–30 MPa
Elongation at Break
300–400%
Coefficient of Friction
0.10–0.22
Abrasion Resistance
Outstanding
Water Absorption
<0.01%
Continuous Service Temperature
–150°C to +80°C
Melting Temperature
130–136°C
Thermal Expansion
2.0 × 10⁻⁴ / °C
Chemical Resistance
Excellent
UV Resistance
Fair to Poor
Machinability
Good

Certifications & Compliance

UHMWPE Sheets – 3mm to 100mm

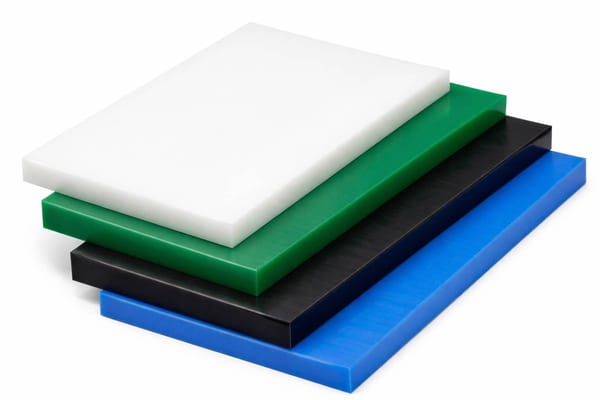

Ultra High Molecular Weight Polyethylene (UHMWPE) sheets are available in black, green, white, and blue, with thicknesses ranging from 3mm to 100mm. Known for exceptional wear resistance, low friction, and impact strength, UHMWPE is ideal for demanding applications such as liners, wear strips, bearings, and industrial components.

Stronger
High Abrasion & Wear Resistance
Top Performer
Years
Low Friction & Self-Lubricating
Ideal for Sliding Applications

Need it cut to size? Try our Cut To Size Calculator

Price Breakdown

Base Price: ₹0.00
Total: ₹0.00

Upload Custom Design

$0.00

Technical Specifications

Specific Density
0.93–0.94 g/cm³
Shore Hardness (D)
60–68
Tensile Strength
20–30 MPa
Elongation at Break
300–400%
Coefficient of Friction
0.10–0.22
Abrasion Resistance
Outstanding
Water Absorption
<0.01%
Continuous Service Temperature
–150°C to +80°C
Melting Temperature
130–136°C
Thermal Expansion
2.0 × 10⁻⁴ / °C
Chemical Resistance
Excellent
UV Resistance
Fair to Poor
Machinability
Good

Certifications & Compliance

Description

UHMWPE sheet is a highly durable thermoplastic known for its exceptional strength-to-weight ratio, high impact resistance, and outstanding abrasion resistance. It has a very low coefficient of friction, making it ideal for applications requiring excellent wear properties and smooth sliding surfaces. UHMWPE sheets are resistant to chemicals, moisture, and UV radiation, which enhances their performance in harsh environments. Common uses include liners for chutes and hoppers, wear strips, marine fender pads, and components in the food, mining, and packaging industries. Its self-lubricating properties also reduce the need for additional lubrication.

We make buying cut to size UHMWPE polyethylene easy and convenient

Also known as Polystone, UHMWPE polyethylene is an abbreviation for Ultra High Molecular Weight Polyethylene. Its properties include high mechanical strength, very high damping properties, ability to withstand constant temperatures from minus 269 to 80 degrees centigrade.

UHMWPE polyethylene is suitable for applications that require unique properties excellent impact resistance and wear and tear resistance. Order wholesale cut to size sheets of UHMWPE polyethylene in white or black and we’ll ship it from the Gold Coast to any location in Australia.

Additional information

Weight 20 kg
Dimensions 3000 × 1500 × 30 mm

Technical Data Sheet

POL UHMWPE Technical Data Sheet

Reviews

There are no reviews yet.

Be the first to review “UHMWPE Sheet”

Your email address will not be published. Required fields are marked *

Plastic Online place picture
4.6
Based on 16 reviews
powered by Google
jock muirhead profile picturejock muirhead
20:02 13 Dec 25
Fantastic quality product and cut to perfection. Will buy again. Fast service and a small treat with the product too.
Brian Lyttle profile pictureBrian Lyttle
01:02 17 Nov 25
Very helpful with requirements
Response from the owner 03:04 17 Nov 25
Thanks Brian, it means the world to us here at Plastic Online.
Andrew Smith profile pictureAndrew Smith
04:40 03 Nov 25
Christopher Jenkins profile pictureChristopher Jenkins
02:19 27 Oct 25
Very easy order process gave me the exact product wanted. Progress of the order was updated clearly and quickly, as was delivery!
Could not have hoped for an easier process.
Many thanks
mark swinchatt profile picturemark swinchatt
07:43 21 Oct 25
Prompt response to queries and good service support.
Raymond Hughes profile pictureRaymond Hughes
21:31 06 Oct 25
Great service and delivery including follow up phone call
G'day M8 profile pictureG'day M8
07:22 29 Sep 25
Fast manufacture and delivery and good customer service. Quality of product is first rate (HDPE cut to order).
andrew profile pictureandrew
23:31 13 Sep 25
Materials deivered to a regional area within a few days. Great service.
Arek Werstak profile pictureArek Werstak
21:15 31 Jul 25
Response from the owner 22:30 31 Jul 25
Thanks for the 5 stars Arek.
Lucy Watson profile pictureLucy Watson
08:43 31 Jul 25
Response from the owner 08:59 31 Jul 25
Much appreciated Lucy
William Evans profile pictureWilliam Evans
00:13 28 Jul 25
Great service. Very happy with the product and would order again
Response from the owner 09:00 31 Jul 25
Thanks William, looking forward to your future orders, we love repeat customers
Petra Duncan-Czizek profile picturePetra Duncan-Czizek
23:38 27 Jul 25
Response from the owner 09:00 31 Jul 25
Thanks Petra, happy to help and appreciate the 5 stars, it really helps up
John Smith profile pictureJohn Smith
23:35 02 Jul 25
Spoke to someone named Kip or kit this morning she was very rude and blunt,
We have an urgent requirement for Teflon sheet and she scoffed at me when I said we needed it urgently, and just said we are too busy to do that.
Very unprofessional
When owners holland plastic read this comment just be aware our order would have been in excess of $20k
we were happy to pay extra in overtime rates or overnight freight.
I would hate to have this person completing sales for my company especially when we have quite a large order needing sorted

Thank you for you terrible service we shall order from an interstate company from now on 👎🏻

Frequently Asked Questions

What are the common applications of UHMWPE sheets?

Conveyor liners and wear strips in material handling systems.Chute, hopper, and silo liners to reduce friction and prevent sticking. Dock fenders and marine applications for impact resistance. Cutting boards in the food processing industry. Machine parts like gears, bushings, and rollers. Impact-resistant panels and protective barriers

Can UHMWPE sheets be used both indoors and outdoors?

UV resistant: Ideal for outdoor environments with prolonged sun exposure, Weather-resistant: Withstand moisture, extreme temperatures, and chemicals, Non-corrosive: Suitable for marine environments and harsh industrial conditions

What colors are UHMWPE sheets available in?

White, Black, Red, blue, green, yellow. Often used in food processing for hygiene control and easy identification

Are UHMWPE sheets easy to fabricate and install?

Yes, UHMWPE sheets are easy to machine, cut, drill, and weld. They can be customized to fit specific dimensions and shapes, making installation straightforward for various applications.

How does UHMWPE perform in high-impact environments?

UHMWPE has excellent impact resistance, even at low temperatures. It can absorb heavy impacts without cracking or breaking, making it ideal for protective barriers, liners, and impact plates.

Is UHMWPE safe for food contact applications?

They are commonly used in food processing facilities for cutting boards, conveyor parts, and liners due to their non-toxic, non-absorbent, and easy-to-clean properties.
